Retrofit Schematics

Previous page Next page
  rev. 2007-09-27

Opportunities that involve piping, ductwork, or control system changes are represented schematically.  Schematics are an important way to communicate the intent of an opportunity to engineers and contractors.

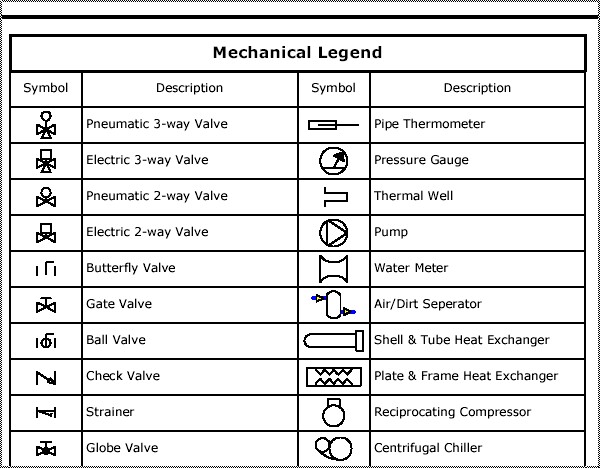

If it's not provided in the report, a legend of drawing symbols is shown below.
